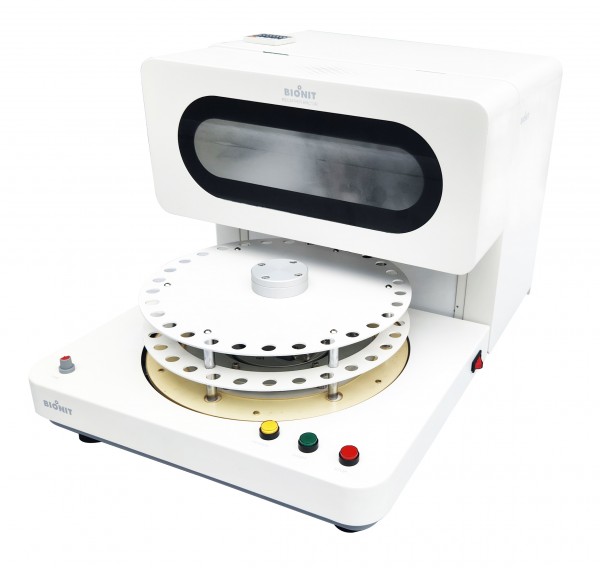

Recapper for Blood Collection Tube Recapper for Blood Collection Tube
Intended For Use

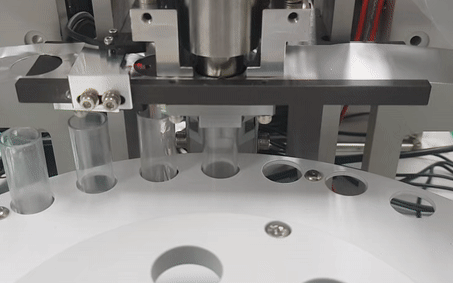

The Bionit BRC13R and BRC16R Recapper seals all different types of vacuum blood collection tubes quickly and safely in one working cycle with AL foil. The tubes are fed via carousel. Carousel consists of 30 slots.
Features
- Included in delivery are a total of 30 slots.
- Economical operating cost
- Simple operation
- Easy recapping process
- Fast speed
- Compact size
- Compatibility between 75mm and 100mm length (BRC13R)
- Minimal cost of consumables with AL foil
- Easy setting for fusion bonding with time and temperature control
Specification

- BRC13R : 30 slots, Type 13 x 75mm & 13 x 100mm of any blood collection tubes.

- BRC16R : 30 slots, Type 16 x 100mm of any blood collection tubes.



 Model Name

 BRC13R (for 13mm Tubes), BRC16R (for 16mm Tubes)

 Recapping Rate

 Approx. 15~20 ea/min

 Number of Slots

 30ea/cycle

 Measurements

 400×550×370 mm(LXDXH)

 Weight

 Approx. 25kg

 Power Supply

 100~240V, 50/60Hz, 1.5A

 Working Temperature/Humidity

 18~30oC/ 20~80%

 AL Foil Reel

- 23mm x 150m (7,200ea sealing for 13mm tube)

- 23mm x 500m (24,000ea sealing for 13mm tube)

- 30mm x 150m (6,250ea sealing for 16mm tube)

- 30mm x 500m (20,800ea sealing for 16mm tube)
Youtube Video
< Recapping System for Blood Collection Tube >
