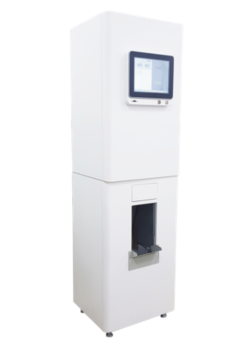

Blood Collection Tube Auto Feeder
Intended For Use

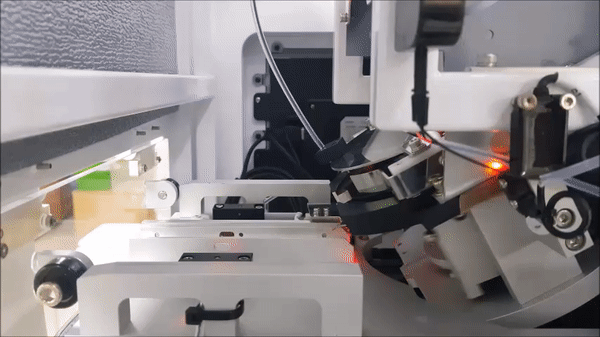

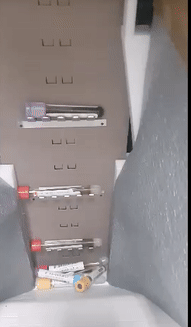

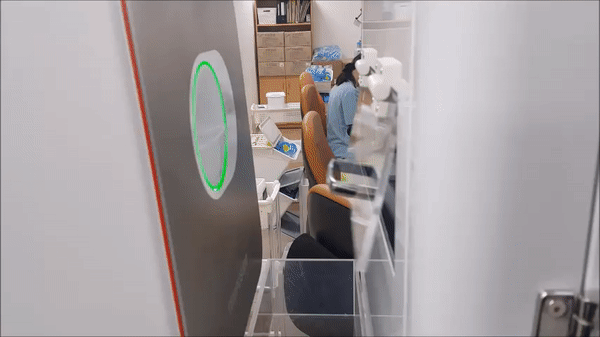

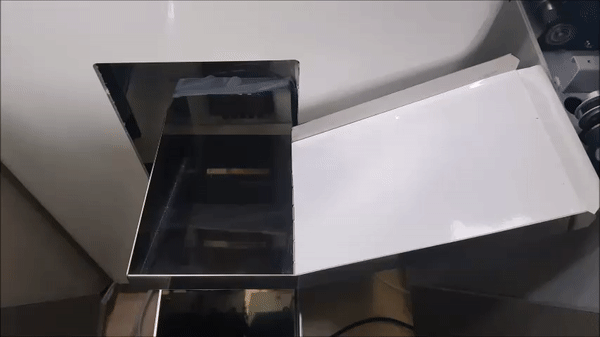

This system automatically receives the vacuum blood collection tubes from the blood collection table, loads them one by one, reads and stores the patient's ID, and detects the direction of the cap of the vacuum collection tube. It is a system that arranges so that it is placed and transmits it to the vacuum transport system (TEMPUS) of the vacuum collection tube and sends it to the examination room.
Features
- Reading the patient information attached to the vacuum collection tube and storing it in the blood collection room computer

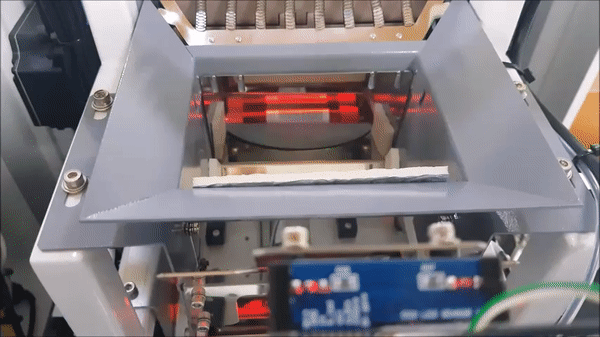

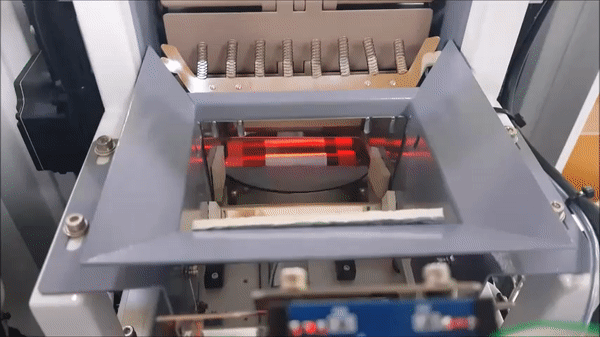

- Reading the direction of the vacuum collection tube
- Specimen tracking function such as vacuum collection tube reception and system location
- Interface program that is easy to connect to the hospital's LIS (Laboratory Information system)
- Specimen barcode supports various types of barcodes such as NW-7, ITF, CODE39, CODE128
Specification

 Quantity of specimen storage

  - 250 specimens

 Vacuum Collection Tube type

  - 13x75mm, 13x100mm or 16x75mm, 16x100mm available

 Controller Display

  - 10.4 inches

 Equipment size

  - 480 x 500 x 1700mm

 Processing speed

  - 360 samples/hour.
